ARP1

Sensibly equivalent to:
CV1118 NR39 POVT136 PT2 VR118

Extras ▼



The ARP1 is a critical distance beam tetrode based on the KT2. Before the CV register called it the CV1118 almost every branch of the UK government purchased this valve under their own Type code. Previously = NR39, VR118 & POVT136.

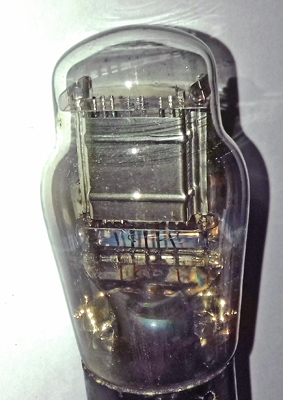

The bright anode with mica sheet above. There are two filament tension springs.
Thanks to Mark Mallison for sending the images.
The classic envelope is  mm in diameter, and excluding the B5 base pins is  mm tall.
Reference: 1043.



Pin Connections
B5
1
2
3
4
5
a
g1
f(-)
f(+)
g2



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
2.0
0.2
100
100
-3.0
3.8
0.75
1.75
0.5
Updated October 13, 2019.
shape:classic construction:pinch type:tetrode age:1930.1940 base:b5 heater:2.0v pins:5 pin:1.a pin:2.g1 pin:3.f(-) pin:4.f(+) pin:5.g2
