AZ12Sensibly equivalent¶ to:241NG VG3716See also:
|
|
|

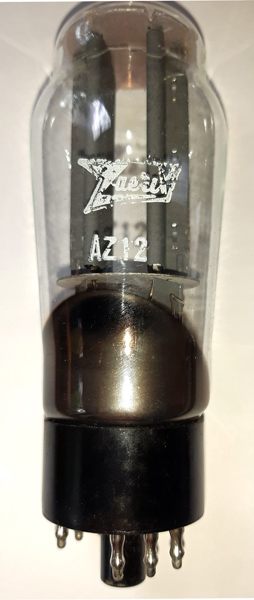

The AZ12 directly heated full wave rectifier is fitted with an eight pin footless base. The AZ4 is electrically identical but fitted with a Ct8 side contact base.The AZ12 has a 4 Volt filament rated at 2.4 Amp.![](../pics/acn0107a.jpg)

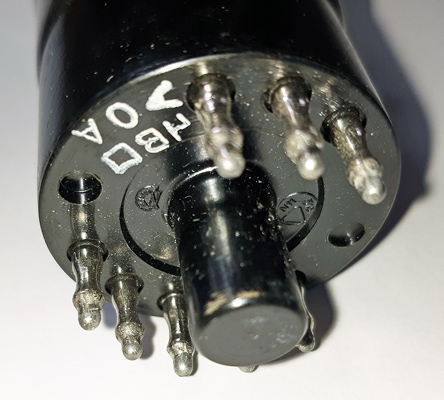

The footless base.Thanks to Mark Mallison for sending the images.The classic envelope is mm in diameter and, excluding the footless base pins, is mm tall.Reference: Data-sheet. Type AZ12 was first introduced in 1938. See also 1938 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) a(1) | nc | nc | nc | f | f | nc | a(2) |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | mAa | ![](../static/pdflogo.gif)
| 4.0 | 2.4 | 500 | 120 |
|
