DLS1Sensibly equivalent¶ to:CV2913See also:
|
|
|
The DLS1 is not a delay switch with a delay of up to one minute. See DLS1 for more details.The heater ran at 3.0 Volts and 0.6 Amps. The delay time was around 30 seconds and not more than a minute. The current carrying capability of the switch was under 200 mA and the voltage across the connections had to be less than 2,000 Volts.Typically thermal delay switches were used to allow mercury vapour rectifiers to reach operating temperature before the HT was applied to the anodes. Drawing current before the rectifier was fully heated would shorten the life of the rectifier.![](../pics/acn0114a.jpg)

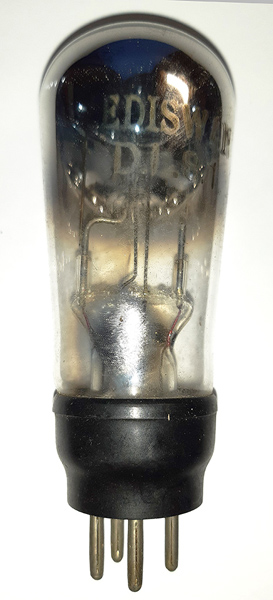

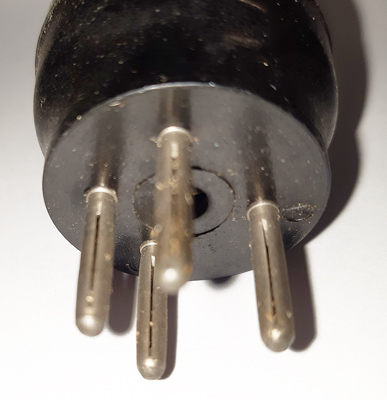

The B4 base pins.Thanks to Mark Mallison for sending the images.The balloon envelope is 43 mm in diameter and, excluding the B4 base pins, is 104 mm tall.References: data-sheet & 3002. Type DLS1 was first introduced in 1933. See also 1933 adverts. |
Absolute Maximum Operating Conditions¶
Delay | Vh | Ah | Va | mAa | ![](../static/pdflogo.gif)
| 3-6 | 0.6 | 2,000 | 200 |
|
PDF scanned from an original document held by the museum |
