6DL5Sensibly equivalent¶ to:
|
|
|
The 6DL5 is an output pentode with low heater consumption designed initially for car radios. It would also provide adequate audio power for a domestic receiver or smaller stereo system.Used in push-pull it could produce six to seven Watts of output.![](../pics/acn0115a.jpg)

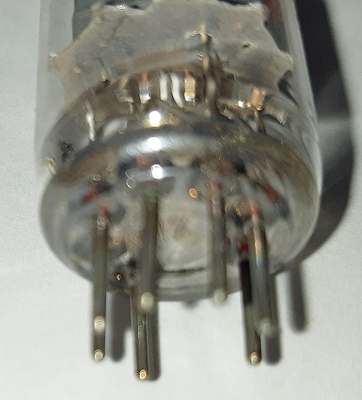

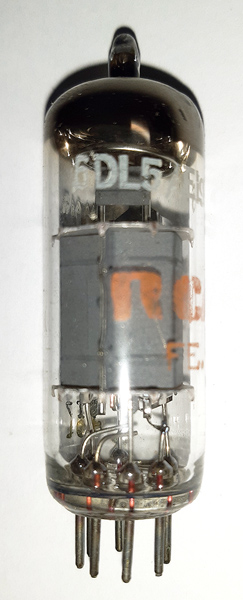

The B7G base pinsThanks to Mark Mallison for sending the images.The thin glass tube envelope is mm in diameter and, excluding the B7G base pins, is mm tall.References: Data-sheet, 3002 & 1040. Type 6DL5 was first introduced in 1955. See also 1955 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) g1 | k,g3 | h | h | a | g2 | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | Pdiss | Pout | ![](../static/pdflogo.gif)
| 6.3 | 0.2 | 250 | 250 | -9 | 24 | 4.5 | 8,000 | 5.0 | 6.0W | 2.3W |
|
Updated January 11, 2024.
|
|
