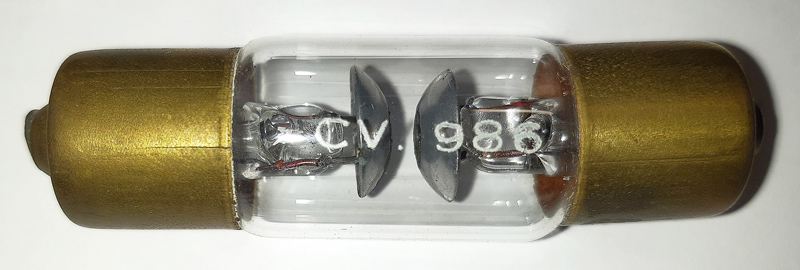

The CV986 is a protective gas-filled spark-gap designed to break down at 250 Volts and can pass a maximum current of 15 Amps. The function is as a lighting arrestor.

Thanks to Mark Mallison for sending the images.

The thin glass tube envelope is  mm in diameter and, excluding the base connections, is  mm tall.

Reference: Data-sheet.

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
