VT-12


See also:
The Twenty-Kilowatt Tube - Irving Langmuir

Extras ▼

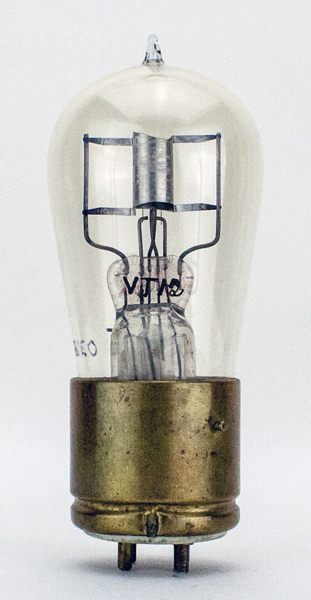

This exhibit is an improved type T Pliotron for transmitter use. The pinch has the designation VT-12 written on it. The improvement over the original VT-12 looks to be the design of the anode supports. This design would marginally improve the anode dissipation but greatly improve the mechanical stability.
This design, for the US Signal Corps, is a low power oscillating triode used for telephone transmitters and was made by General Electric as a substitute for the Western Electric VT2. It was replaced by the VT-14.

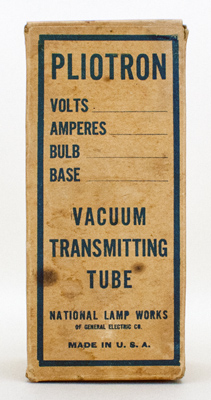

The original box has no information present.

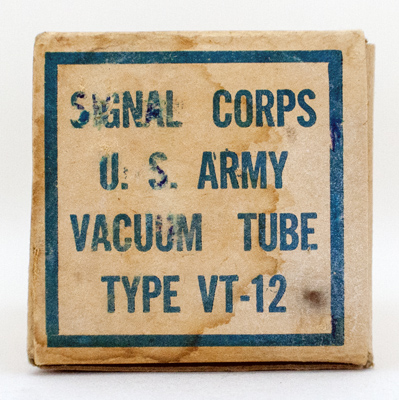

The end of the box just carries the Type designation of VT-12.
Thanks to Joe Gruber for sending the images.
The balloon envelope is  mm in diameter and, excluding the UV base pins, is  mm tall.
References: J Gruber, 3002 & 1047. Type VT-12 was first introduced in 1918.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
7.5
1.75
Updated October 20, 2019.
shape:balloon construction:pinch type:triode age:pre.1920 base:uv pins:4 pin:
