CG-1162

Sensibly equivalent to:
VT-14

Extras ▼

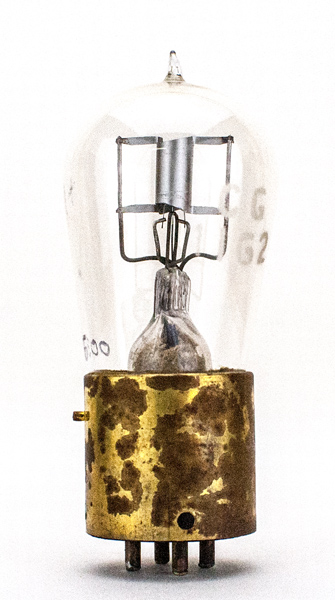

This is a later Structured Version of the CG1162 Transmitting Tube. Same as the VT-14.

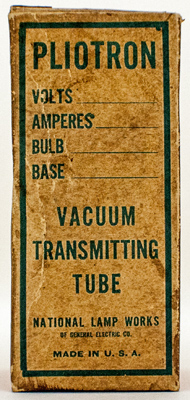

The original box. The dimensions are 57 mm square and 127 mm tall.
The base of the box giving the Type designation.
Thanks to Joe Gruber for sending the images.
The balloon envelope is 35 mm in diameter and, excluding the base pins, is 101 mm tall.
Reference: Joe Gruber. Type CG-1162 was first introduced in 1918.



Updated March 07, 2020.
shape:balloon construction:pinch type:triode age:pre.1920 base:uv pins:4 pin:
