DL-4


See also:
DV and DL valves - Isolantite

Extras ▼

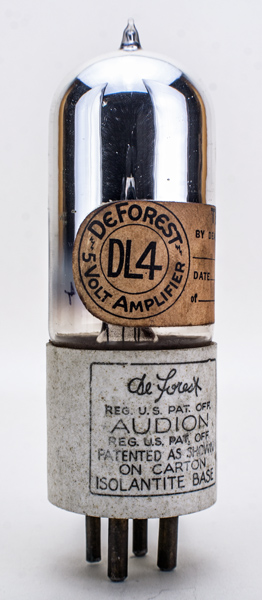

The De Forest DL series first appeared in 1926. The L references the change to the UX4 base.
The DL-4 was designed as an RF amplifier as is denoted on the packing can.

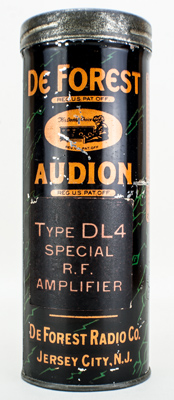

The transit can for the DL-4.
Thanks to Joe Gruber for sending the images.
The envelope is 32 mm in diameter and, excluding the UX4 base pins, is  mm tall.
Reference: Bill Condon & Joe Gruber.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
5.0
0.25
90
-4.5
5.3
7,800
1.15
9.0
