DL-14


See also:
DV and DL valves - Isolantite

Extras ▼

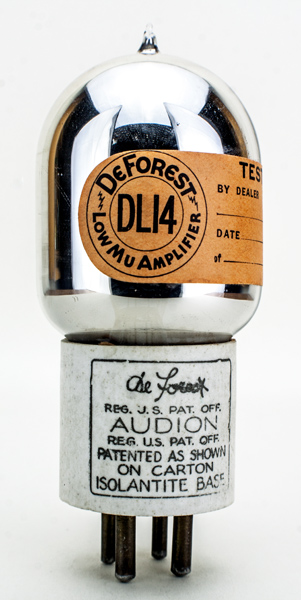

The De Forest DL series first appeared in 1926. The L references the use of the UX4 base.
The DL-14 was designed as a low μ audio output valve.

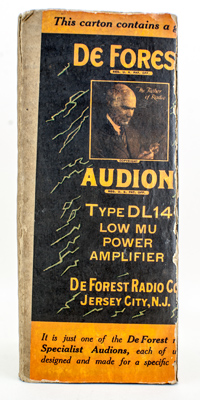

The original box for the DL-14.
Thanks to Joe Gruber for sending the images.
The envelope is 32 mm in diameter and, excluding the UX4 base pins, is  mm tall.
Reference: Bill Condon & Joe Gruber.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
5.0
0.5
180
-40.5
15.0
2,600
1.1
3.0
Updated September 22, 2020.
shape:wide.glass.tube construction:pinch type:triode age:1920.1930 base:ux4 heater:5.0v pins:4 pin:
