Sodion A


See also:
The Sodion Tube

Extras ▼

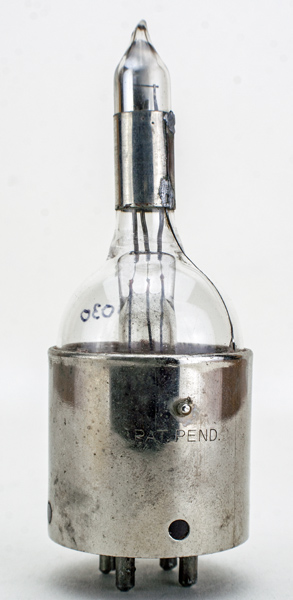

This exhibit is a Sodion A soft triode detector. It was made by the Connecticut Telephone & Electric Co. The external anode operates by electrolytic conduction through the glass in the same way as the J-117.
At the widest part of the envelope is 38 mm in diameter.
Thanks to Joe Gruber for sending the image.
The thin glass tube envelope is 10 mm in diameter and, including the UV base pins, is 102 mm tall.
Reference: Joe Gruber & 1047.



Updated November 26, 2020.
shape:thin.glass.tube construction:pinch type:triode age:1920.1930 base:uv pins:4 pin:
