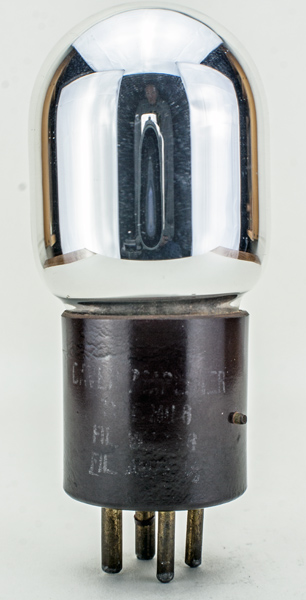

The MU8 from Daven Radio Corporation is not detailed in Tyne1047 or other sources checked. The base cap carries some basic information. ![](../pics/aco0127a.jpg)

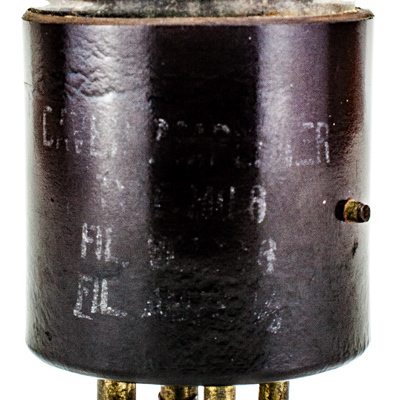

The base cap has printed information that in this case is virtually illegible. The name Daven can be read. The filament voltage looks to be 6 and the current looks to be ⅓ A.Thanks to Joe Gruber for sending the images.The envelope is mm in diameter and, excluding the UX4 base pins, is mm tall.References: Original Box. |
Pin Connections
| 1 | 2 | 3 | 4 | ![](../static/key.gif) a | g1 | f | f |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | ![](../static/key.gif)
| 6.0 | 0.25 |
|
Updated July 06, 2021.
|
|
