G400/1K

Sensibly equivalent to:
CV2194
See also:
STC Cold Cathode Valves Advert

Extras ▼

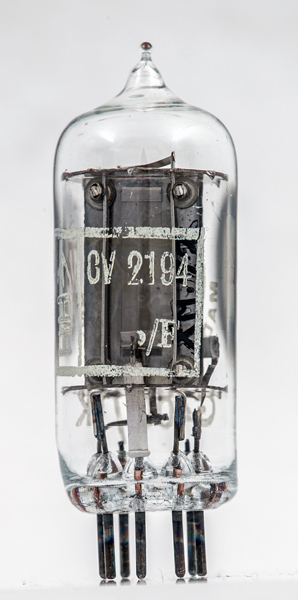

The CV2194 from STV is a high stability, high voltage, low current voltage stabiliser that is directly equivalent to the commercial G400/1K. The priming anode and actual anode are to be connected together in the external circuit.

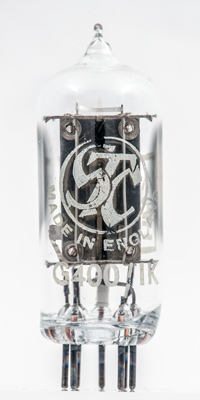

The STC logo and the commercial designation. The lettering blocks a clear view of the internal structure. There are two vertical plates separated by a space. By one plate is a thin wire - the priming anode.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 45 mm tall.
Reference: Data-sheet. Type G400/1K was first introduced in 1958.



Pin Connections
B7G
1
2
3
4
5
6
7
ic
k
ic
a
ic
a(p)
ic



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
300
4.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 15, 2021.
