The CV2495 is a fixed frequency pulsed magnetron with a peak input power of 230 kW during a 250 ns pulse. The operating frequency is around 35 GHz in the Ka band.
Typical applications are military radar.

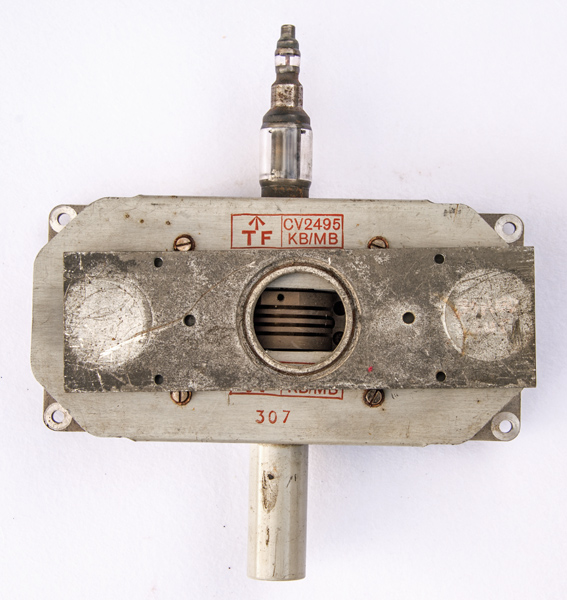

The rectangular block housing the magnets measures 100 x 200 x 60 mm. The unit weighs about 4.5 kg.
The output is via a WG22 flange.

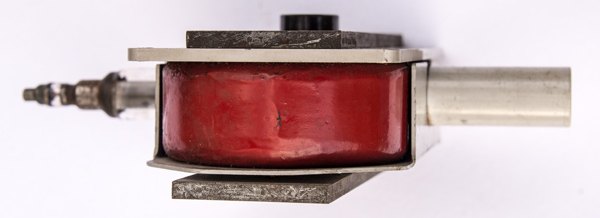

One of the powerful magnets.
The output port is protected by a screw-on cap.

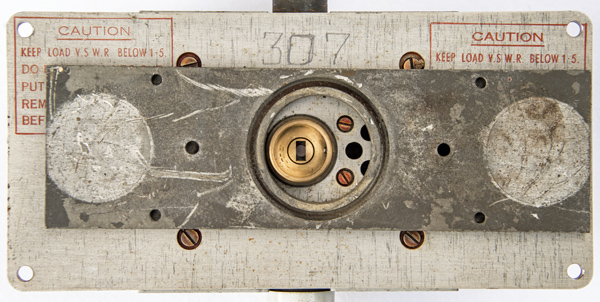

The WG22 output.
The thin glass tube envelope is 20 mm in diameter and, including the base pins, is 230 mm tall.
Reference: Data-sheet. Type CV2495 was first introduced in 1959. See also 1959 adverts.


Absolute Maximum Operating Conditions
General Notes
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 24, 2021.
