6Z5PSensibly equivalent¶ to:6Ж5Л
|
|
|

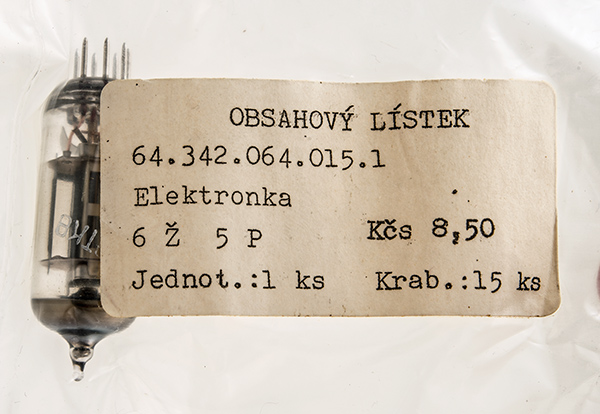

The 6Ж5Л (6Z5P in translation) is a Russian HF pentode with a high mutual conductance of greater than 5.6 mA/V. It has vibration resistance and a wide temperature operating range.The valve came complete with original polythene envelope.

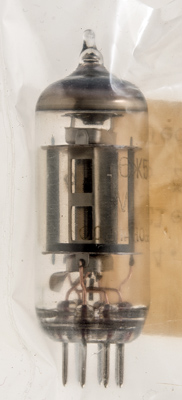

The construction is as a beam tetrode.The thin glass tube envelope is 18 mm in diameter and, excluding the base pins, is 48 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |  g1 | g3 | h | h | a | g2 | k |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm |
| 6.3V | 0.45 | 300 | 150 | - | 10.0 | 2.8 | 0.35M | 9.0 |
|
Updated December23, 2022.
|
|
