The Acorn Valve

A Reproduction of the original data sheet for the 956

Extras ▼

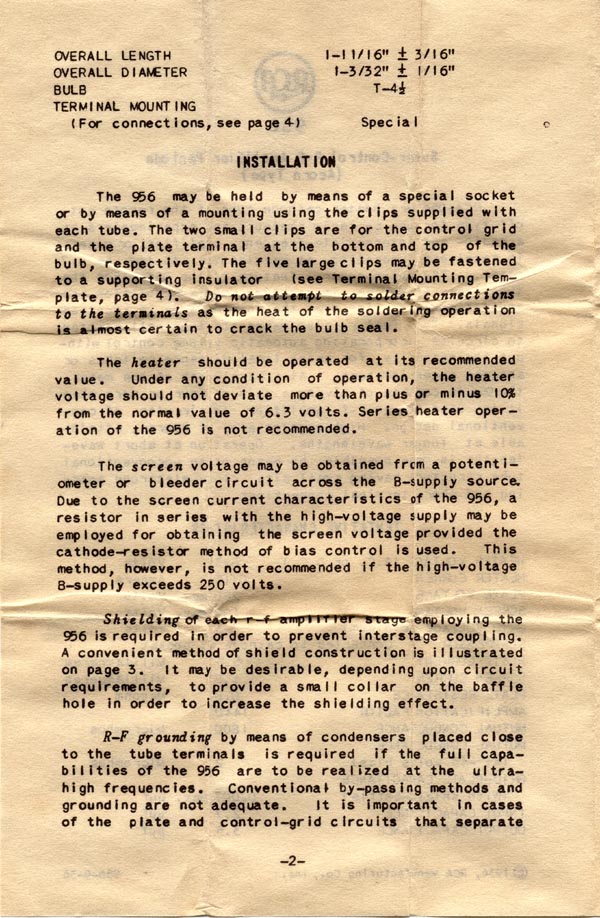

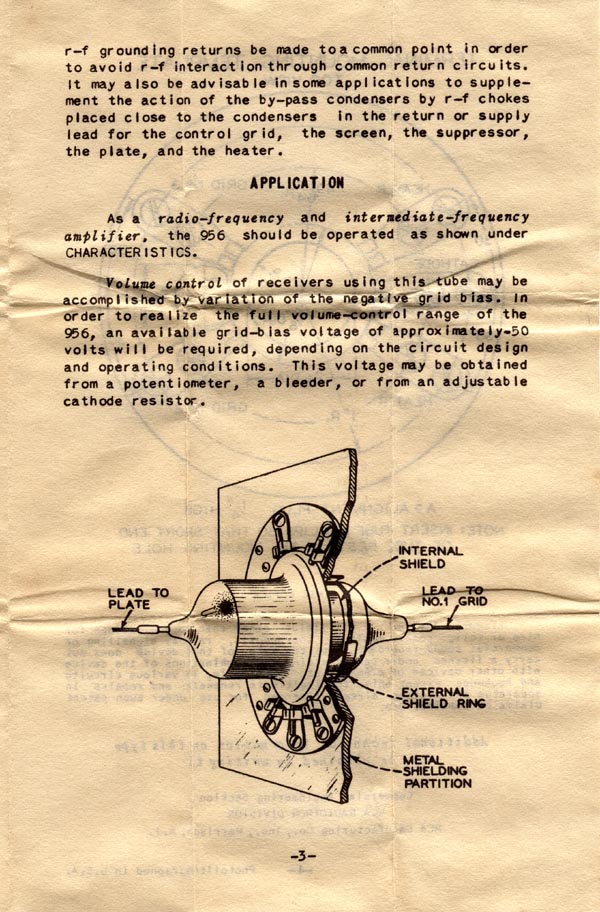

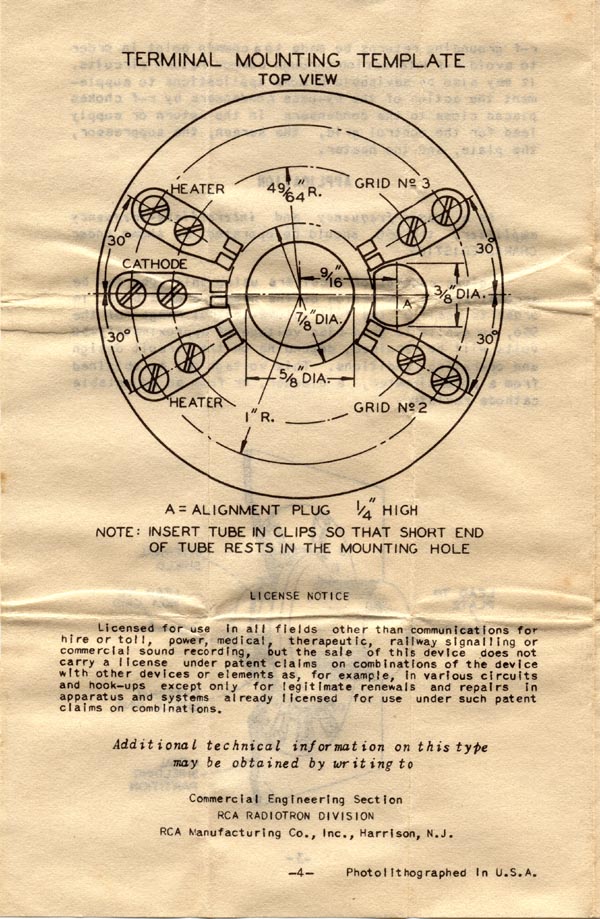

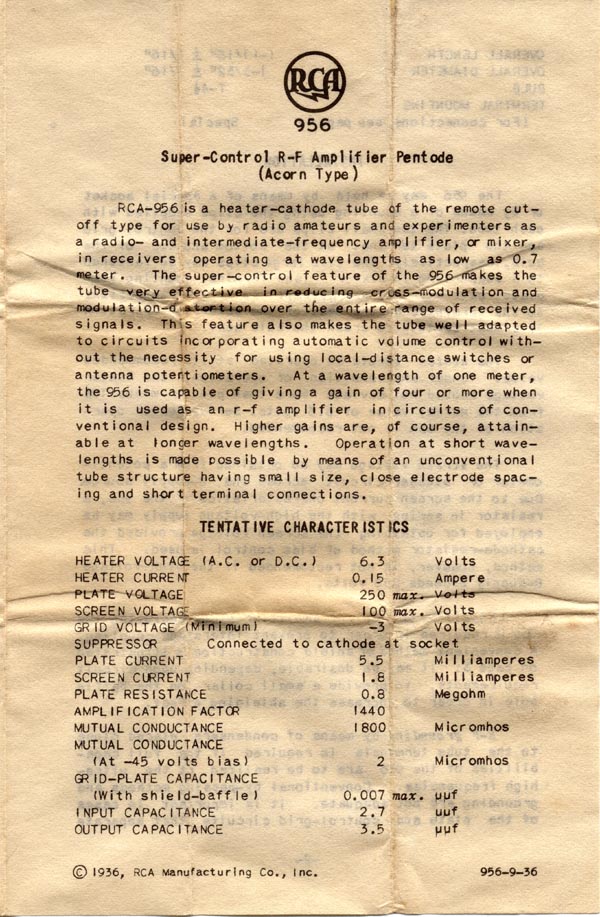

This data-sheet dates from 1936 and was packed with the 956.

Examples of Acorn valves in the museum are: 9004, 954, 955 and 956.

See also the article Acorn Antiques and the EF50 article.

Use browser back button to return.
art-056
