VR150

Sensibly equivalent to:
0D3 150C3 CV216 CV685 G150/3D G180/2D GD150A/S GL150/30 KD25 QS150/40 VT-139 WT-294

Extras ▼



The VR150 is a gas filled discharge tube that exhibits a near constant voltage across the valve for currents within the range 5mA to 40mA. In fact the regulation is 150 plus or minus 5.5 Volts.

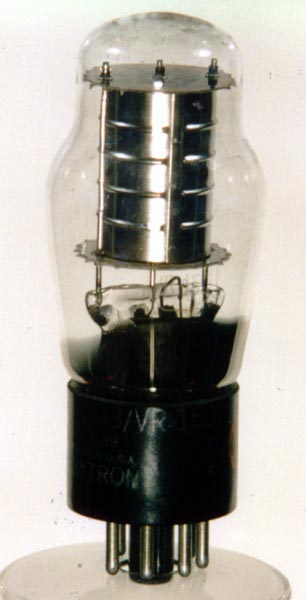

The construction is of a central cold cathode within a cylindrical anode.
The classic envelope is 38 mm in diameter and, excluding the IO base pins, is 88 mm tall.
References: Data-sheet & 1040.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
k
7
nc
a
nc
3
nc



Absolute Maximum Operating Conditions
Stabiliser
Va
Vstab
mAa
180
150
5-40
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 19, 2013.
