6AS6

Sensibly equivalent^¶ to:

409A 5725 6AS6W CV2522 CV4011

See also:

Mufax Chart Recorder Maintenance Manual

Extras ▼

RCA G8LSD Valve Collection Other 6AS6 exhibits

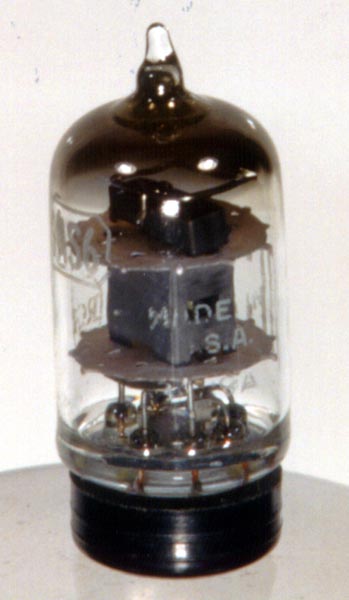

The 6AS6 is a physically small amplifier pentode. It is designed for dual control and therefore the suppressor has a short grid base or control range.

Through holes in the anode plates can be seen the outer two grids. Both wound on notched rods and both rounded at the ends and flattened across the anode width. The cathode assembly is also a flattened tube.

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 35 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type 6AS6 was first introduced in 1949. See also 1949 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	a	g2	g3

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.175	130	120	-2	5.2	3.5	110k	3.2

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated March 10, 2014.
