CV2522

Sensibly equivalent to:
6AS6

Extras ▼

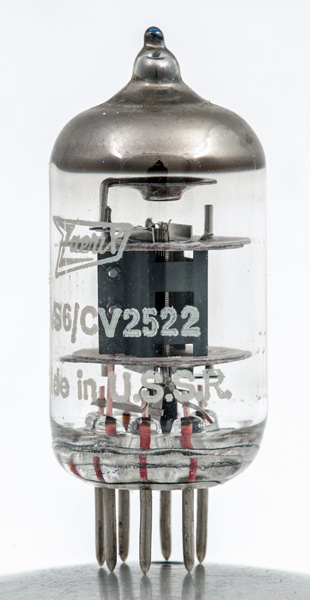

The 6AS6/CV2522 is a physically small amplifier pentode. It is designed for dual control and therefore the suppressor has a short grid base or control range.
Reseller Zaerix imported this valve from the USSR.
The close wound suppressor grid for dual control.

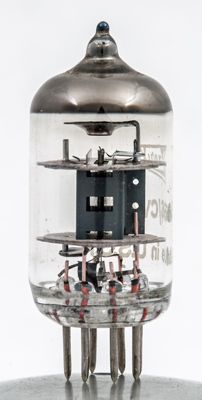

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 38 mm tall.
References: Data-sheet & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.175
130
120
-2
5.2
3.5
110k
3.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 22, 2020.
shape:thin.glass.tube construction:all.glass type:pentode age:1940.1950 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.g3
