6G6G

Sensibly equivalent to:
CV1926 VT-198A

Extras ▼

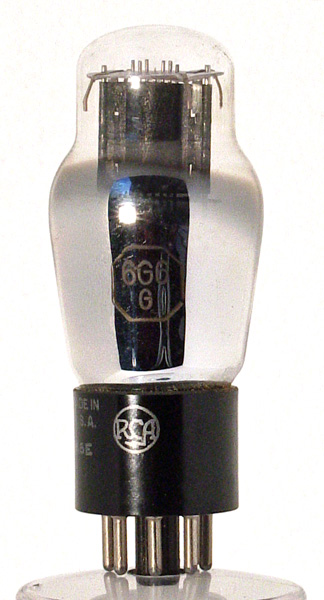

The 6G6G audio output pentode was designed for radio receiver use. The designation VT-198A is on the box and it is marked for the US Army Signal Corps.
The whole point of type 6G6 is economy of heater and HT consumption where only modest audio output is required. As such, it was a good choice for driving the internal speakers of communications receivers, including types used by the military. The 'VT' designation is here part of the WWII US Government sequence (comparable to our CV sequence) and stands for 'vacuum tube'. Unlike the (entirely independent) British RAF 'VT' sequence, a transmitting application is not necessarily implied.
The classic envelope is 36 mm in diameter and, excluding the IO base pins the valve is 84 mm tall.
References: Data-sheet & 1040. Type 6G6G was first introduced in 1937. See also 1937 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
D
6.3
0.15
180
180
-9
15
2.5
175k
1.1
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 06, 2022.
