VT-134

Sensibly equivalent to:
12A6
See also:
Metal Striptease

Extras ▼



The VT-134 / 12A6 American metal beam tetrode was designed in the early 1940's for use in single end audio stages of receivers, mainly domestic but the rugged construction made them ideal for military/industrial use as well and hence was adopted by the American Government as Vacuum Tube 134.

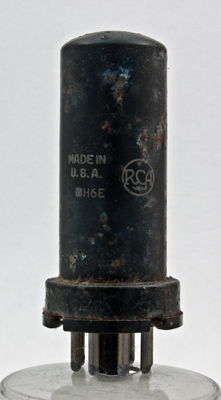

The RCA logo and country of origin.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 67 mm tall.
References: Data-sheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
12.6
0.15
250
250
-12.5
30
3.5
70k
3.0
2.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
