PY33

Sensibly equivalent to:
PY32 U291
See also:
PPC Cathodes Advert - New Rectifier for Television Receivers

Extras ▼



The PY33 is an HT rectifier for television receivers. It operates directly from the mains input and with a series resistance of 25 Ohms it will feed a reservoir capacitor of 200 µF. The 300 mA heater was the standard for TV receivers from the 1960s.
The advantage of the PY33 was a voltage drop across the valve of only 10 Volts made possible by an ultra smooth cathode coating.

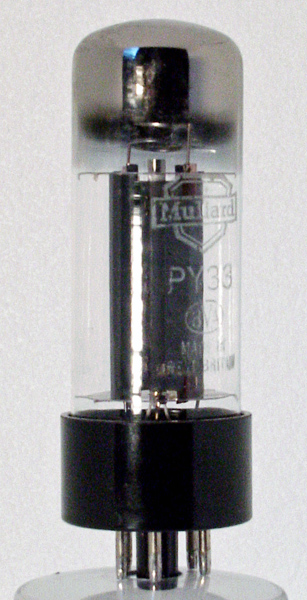

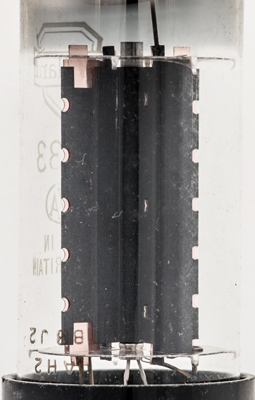

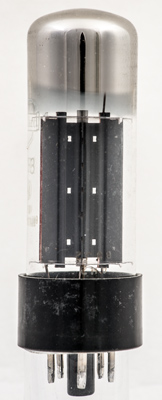

The wide glass tube envelope is 30 mm in diameter, and excluding the IO base pins, is 92 mm tall.
References: Datasheet & 1040. Type PY33 was first introduced in 1961.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
a
-
a
-
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
29
0.3
250
325
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 17, 2014.
