30P12

Sensibly equivalent to:
12FB5 N369 PL801
See also:
Valves and their Habits - Ediswan First Preference Range Advert - Aspects of Design 3: Frame Output Valves

Extras ▼



The 30P12 beam tetrode was designed as a single ended audio amplifier output valve for television receiver use or as a TV frame scan output valve.
To operate successfully on the low anode voltage available in a TV receiver the valve has to operate at higher current to achieve the target output power of around 2 Watts.

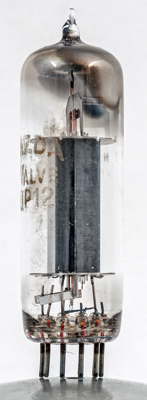

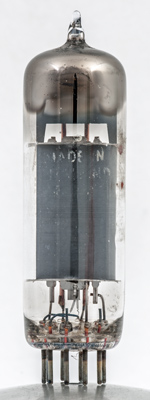

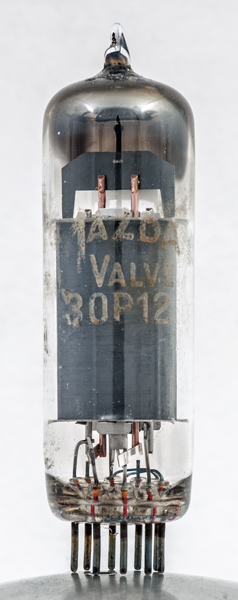

The valve is lettered as BVA and Made in England. The control grid is fitted with a small cooling fin, seen at the top.
The anode is flat across the working faces.
The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 68 mm tall.
References: Datasheet & 1040 Type 30P12 was first introduced in 1958.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
D
12.6
0.3
170
180
-10.3
31
7.3
6.7
2.25
7%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 06, 2016.
