12AT6

Sensibly equivalent to:
HBC90
See also:
Brimar American Miniature Valves Advert, November 1950 - Brimar 6BE6, 6BA6, 6AT6, 6AQ5 & 6X4 12BE6, 12BA6, 12AT6, 35L6GT, 35W4, 6AK6, 1S5, 1U5, 3S4, 3V4, 1R5 & 1T4 Advert - Brimar 6BH6, 12AH8, 6BA6, 6AT6, 6V6GT, 12BA6, 12AT6 & 12A6 Advert

Extras ▼



The 12AT6 is a double diode triode for receiver applications. It is of medium impedance and very low current. Type 6AT6 differs only in having a 6.3 Volt heater.

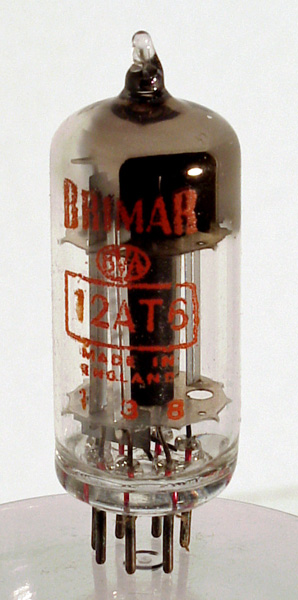

The cathode tube extends above the triode structure and two bright metal straps can be seen in the picture, these are formed into 2 mm squares at the top of each strap. These are placed either side of the cathode and form the diode anodes. Exhibit 12AT6 has more detailed images.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
References: Data-sheet & 1040. Type 12AT6 was first introduced in 1946. See also 1946 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a(d2)
a(d1)
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
12.6
0.15
250
-3
1
58k
1.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 29, 2013.
