U4020

Sensibly equivalent to:
1D5 40SUA C10B CV764 CV1267 ID5 RZ UR1C V20

Extras ▼



The U4020 is a half wave rectifier designed for 200 mA series connected heaters as found in AC/DC radio receivers.
The reservoir capacitor can be 16 µF with an effective minimum series resistance of 47 Ohms.

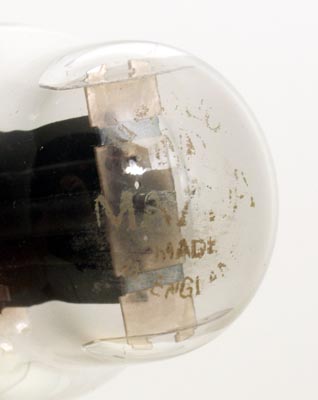

The dome carries all of the identification. The arrangement of micas allows the electrodes to be a push fit to the shaped envelope.

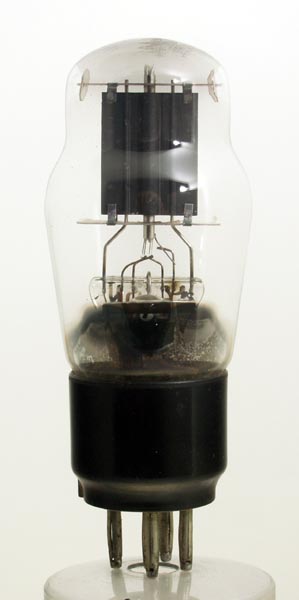

The classic envelope is 42 mm in diameter and, excluding the B5 base pins, is 99 mm tall.
References: Data-sheet, 1040 & 1043. Type U4020 was first introduced in 1934. See also 1934 adverts.



Pin Connections
B5
1
2
3
4
5
a
nc
h
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
40.0
0.2
250
120
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2022.
