CV1052

Sensibly equivalent to:
1637 EL32 OM9 VT52

Extras ▼

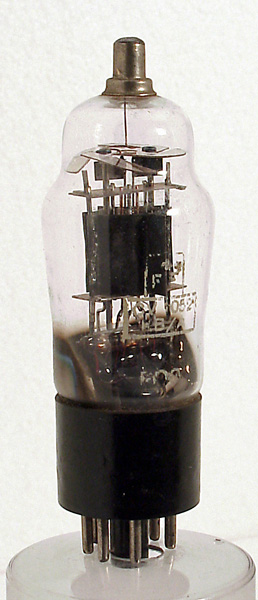

The CV1052 UK service valve is equivalent to an EL32 audio output pentode. The power is small at 3.6 Watts but more than adequate for single ended audio output stages in receivers.
The classic envelope is 33 mm in diameter and, excluding the IO base pins, is 91 mm tall.
References: Data-sheet & 1043. Type CV1052 was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
nc
h
a
g2
nc
nc
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.2
250
250
-18
32
5
70k
2.8
3.6
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
