PL36

Sensibly equivalent to:
25E5 25F7
See also:
The PL36 in Pictures

Extras ▼



The PL36 was designed for service as a line timebase output valve in television receivers and is designed for series heater chain use. It has a 6.3 Volt parallel heater version the EL36.
The maximum positive peak voltage on the anode is 7 kV and the screen dissipation is up to 5 W.

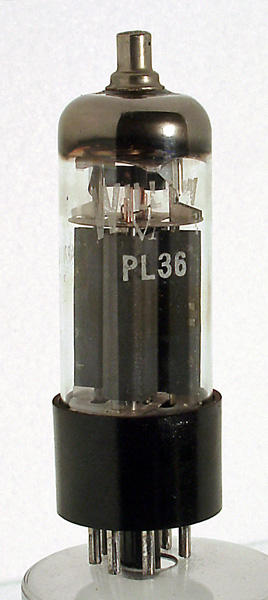

The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 88 mm tall.
References: Datasheet, 3002, 1040 & 1043. Type PL36 was first introduced in 1954.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
-
g2
g1
-
h
k,g3
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
Pdiss
25
0.3
170
170
100
8.0
8W
Thanks to Frank Philipse for supplying the above PDF datasheet.
