CV858

Sensibly equivalent^¶ to:

6J6 CV4031 ECC91

Extras ▼

Unknown G8LSD Valve Collection

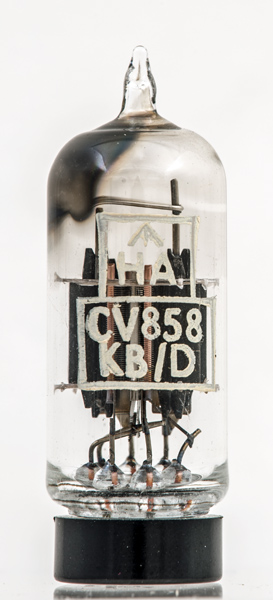

The CV858 is the UK service designation for the 6J6. This miniature double triode was used for VHF signal amplification.

The construction has a common flattened tube cathode, with the control grids either side.

The anodes are U channel sections either side of the central cathode. At first sight the valve appears to be a single device.

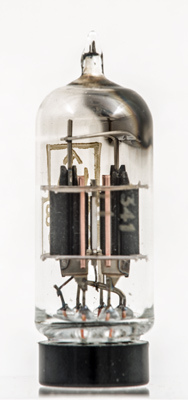

The central white coated cathode. The single sided grids are shaped to pass flat in front of the cathode.

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins is 46 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type CV858 was first introduced in 1956. See also 1956 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	a(2)	a(1)	h	h	g(1)	g(2)	k

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm
	6.3	0.45	100	-0.85	8.5	7100	5.3

Thanks to Frank Philipse for supplying the above PDF datasheet.
