PL84

Sensibly equivalent to:
15CW5 30P18 N379
See also:
Valves and their Habits

Extras ▼

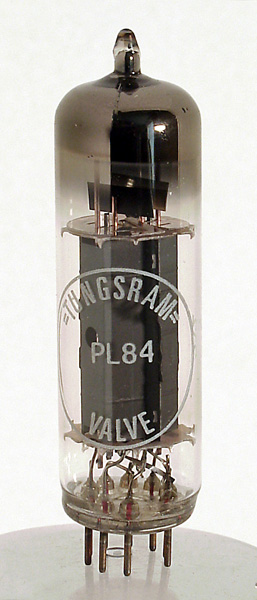

The PL84 audio output pentode was designed for use in television receivers. Like the UL84 with a 100mA heater it is a low voltage high current version of the EL84, itself a standard in design.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 69 mm tall.
References: Datasheet & 1040. Type PL84 was first introduced in 1956.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
15
0.3
170
170
-12.5
70
5.0
20,000
6.4
3.5W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 24, 2014.
shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b9a heater:300ma pins:9 pin:1.ic pin:2.g1 pin:3.k.g3 pin:4.h pin:5.h pin:6.ic pin:7.a pin:8.ic pin:9.g2
