Z900T

Sensibly equivalent to:
CV5122 PL5823

Extras ▼



The Z900T is a cold cathode trigger tube and therefore very similar to a thyratron.

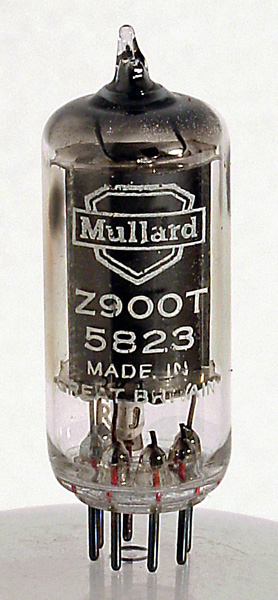

The picture shows the rear of the cathode, it is a curved plate and looks like the cathode of a photocell. In front of the cathode is a control electrode, and at the front of the envelope is the anode. This hollow tube is shielded in a glass tube for most of its length. To the side of the anode is a small round electrode.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
Reference: Datasheet.



Pin Connections
B7G
1
2
3
4
5
6
7
a
ic
k
t
ic
ic
k



Absolute Maximum Operating Conditions
Thyratron
Va
mAa
290
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
