Z803U

Sensibly equivalent to:
CV2434
See also:
Mufax Chart Recorder Maintenance Manual - 1955 Exhibition - Z803U Advert

Extras ▼

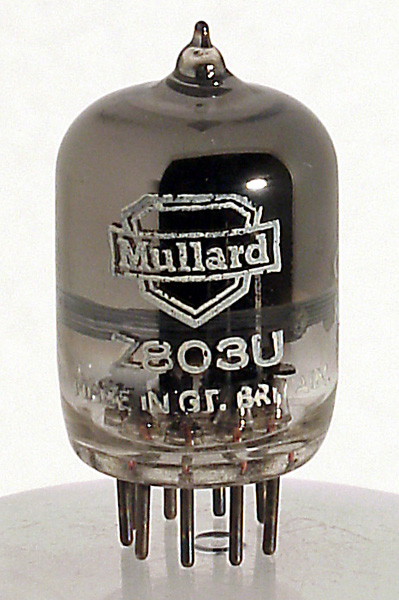

The Z803U thyratron is a cold cathode device. The device will conduct when a set voltage is reached on the control electrode and the ionisation within the device will then form an avalanche discharge.
The electrode tr is the trigger, and the electrode p is the priming electrode.

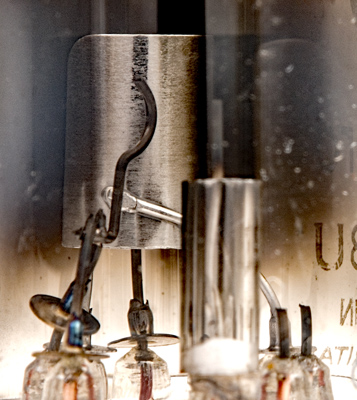

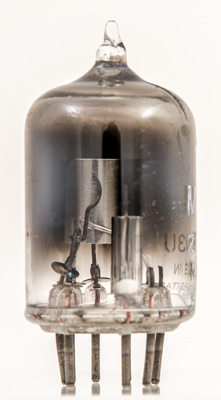

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 33 mm tall.
Reference: Datasheet. Type Z803U was first introduced in 1955.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a
ic
ic
k
k(1)
p
k
tr
tr



Absolute Maximum Operating Conditions
Thyratron
Va
mAa
290
25
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 14, 2016.
