6AV5GA



Extras ▼



The 6AV5GA valve is a compact American line time base output valve dating from the later 1950s and designed for series heater chain use. Since American TV at that time used different time base standards, American TVs (and hence specialised American TV valves) are not too common in the UK.
The 6AV5 is less powerful than the 6AU5 but is pin compatible with it.

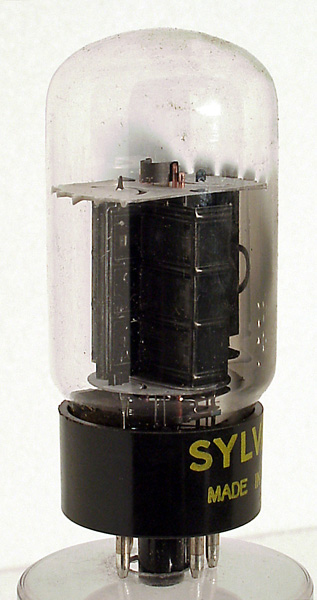

The wide glass tube envelope is 36 mm in diameter and, excluding the IO base pins, is 79 mm tall.
Reference: Datasheet. Type 6AV5GA was first introduced in 1958.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1
h
k,g3
-
a
-
h
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
6.3
1.2
250
150
-22.5
55
2.1
5.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 21, 2014.
