6AU5GT

Sensibly equivalent to:
6AU5

Extras ▼



The 6AU5GT is described as a beam pentode and was designed for line output service in television receivers. An alternate design use is as a series pass device in regulated power supplies.

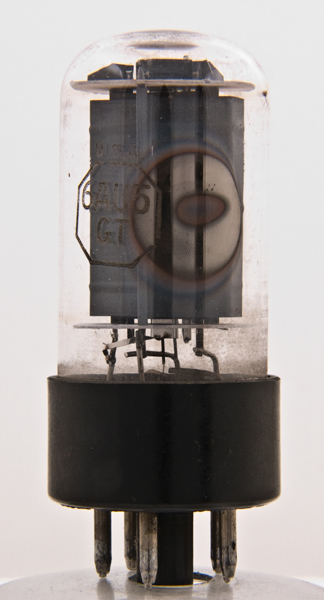

The grey anode allows greater heat dissipation by radiation than a bright metal anode. The 6AU5GT has a 10 Watt anode dissipation.

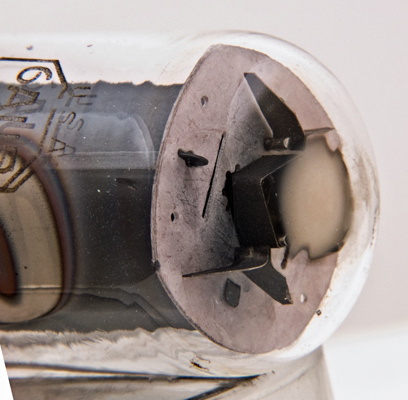

The top view shows the heat sink fins attached to the grid support rods.

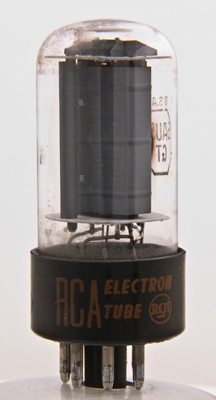

The wide glass tube envelope is 29 mm in diameter, and excluding the IO base pins is 65 mm tall.
Reference: Data-sheet. Type 6AU5GT was first introduced in 1949. See also 1949 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1
h
k,g3
nc
a
nc
h
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
1.25
550
200
-45
110
-
6,000
5.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 06, 2022.
