U52

Sensibly equivalent to:
5U4G CV575 CV1071 CV1575 GZ31 VU71

Extras ▼



The U52 is a very useful rectifier with its 250 mA current rating and PIV of 1,400 Volts.

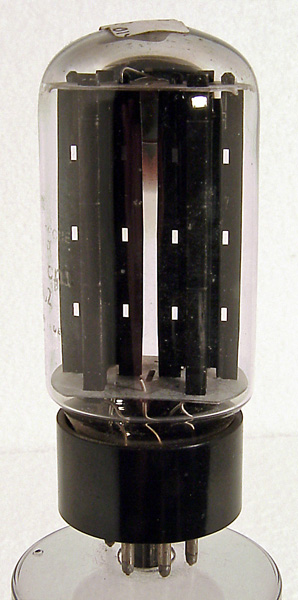

This example is of modern construction, with a glass disc base replacing the old pinch that was used in the original late 1930's valves.
The maximum reservoir capacitor is 16 µF and the minimum series resistance is 180 Ohms.
The wide glass tube envelope is 36 mm in diameter and, excluding the IO base pins, is 87 mm tall.
References: Datasheet, 1040 & 1043. Type U52 was first introduced in 1938.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
f
-
a(2)
-
a(1)
-
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
3.0
500
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 21, 2014.
