VT510

Sensibly equivalent to:
CV1510 QV04-7

Extras ▼

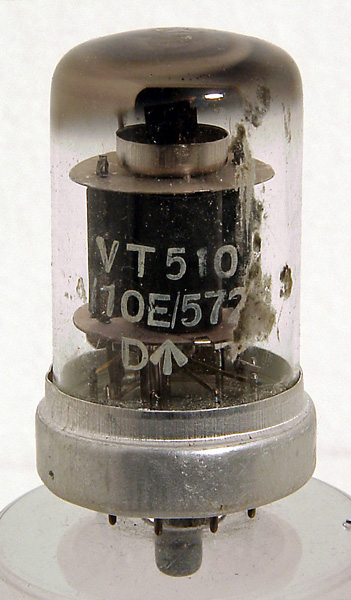

This single beam tetrode is an early all glass envelope design, probably from the late 1940's. The output is modest and the dissipation high in relation to the output. The other possible use would be as a frequency multiplier rather than a class C amplifier.
The wide glass tube envelope diameter is 30 mm, with a wider skirt, the overall length excluding B9G base pins, is 58 mm.
References: Data-sheet & 1040. Type VT510 was first introduced in 1947. See also 1947 adverts.



Pin Connections
B9G
1
2
3
4
5
6
7
8
9
h
a
g2
g2
bp,s
k
g1
bp,s
h



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pout
Pdiss
freq
f.max
6.3
0.6
300
250
-50
44
6
0.4
7.7
7.5
60M
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 26, 2013.
