ML7003

Sensibly equivalent to:
7003

Extras ▼

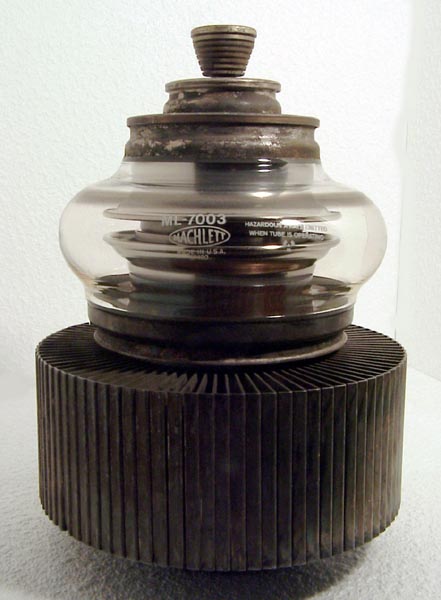

The ML7003 is an RF power triode designed to operate as a pulse modulator. It can dissipate 3 kW.
In the data the anode voltage is given as a hold off voltage of 40,000 Volts and the current as 60 Amps.
The wide metal tube envelope is 190 mm in diameter and, is 282 mm tall.
Reference: Data-sheet. Type ML7003 was first introduced in 1964. See also 1964 adverts.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
freq
8.5
60
3000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 31, 2013.
