CV2516

Sensibly equivalent to:
2C39A SV2C39A TD1-100

Extras ▼

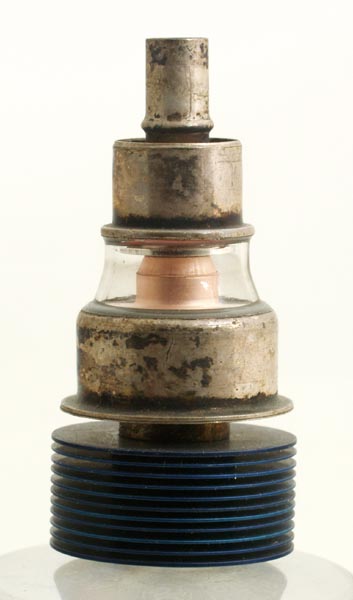

The STC CV2516 is also marked as the commercial 2C39A and is a planar design of disc seal construction. This UHF triode was designed for use in a co-axial cavity with forced air or water cooling.
The labelling of the valve is on the anodised aluminium cooling fins.

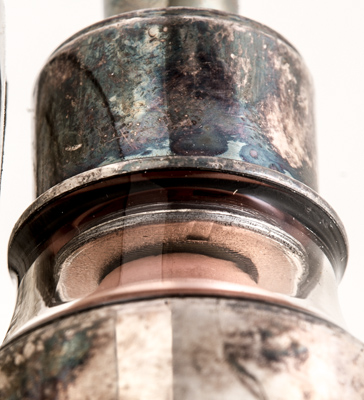

The very small gap between the long Copper anode and the grid mesh is clearly visible in the above picture.

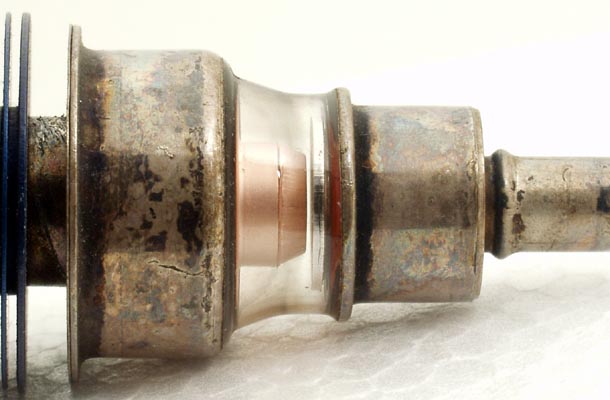

The planar envelope is 32 mm in diameter and 66 mm tall.
References: Datasheet & 1016.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
f.max
Pout
6.3
1.0
1000
100
2400
20W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2013.
