5V4G

Sensibly equivalent to:
52KU 5AQ4 CV729 GZ32
See also:
The Williamson Amplifier

Extras ▼

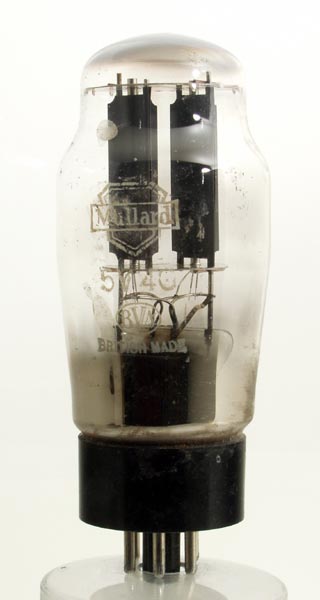

The Mullard 5V4G is a full wave rectifier with a maximum rectified output of 175 mA. The minimum series resistance to prevent excessive current flow is 100 Ohms.
The close-up picture shows the method of holding the two halves of the sheet metal anode by clamping lugs through the second plate.
The classic envelope is 42 mm in diameter and, excluding the IO base pins, is 97 mm tall.
References: Data-sheet, Data, 1040 & 1043. Type 5V4G was first introduced in 1937. See also 1937 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
nc
a(2)
nc
a(1)
nc
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
375
175
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 19, 2023.
