832A

Sensibly equivalent to:
C180 CV788 QQE04-20 QQV04-15

Extras ▼

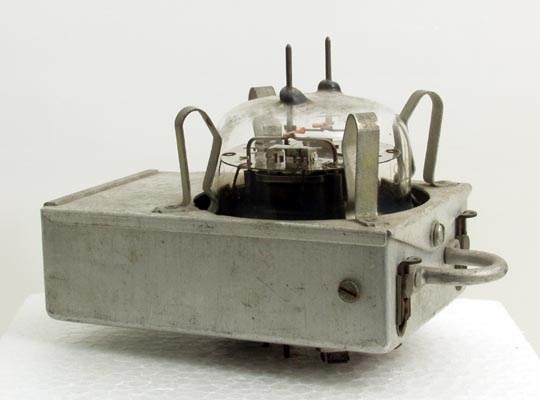

This valve, a dual transmitting tetrode, arrived as part of plug-in module.
The module shows the 832A in position. See QQE04-20 for details of the valve.

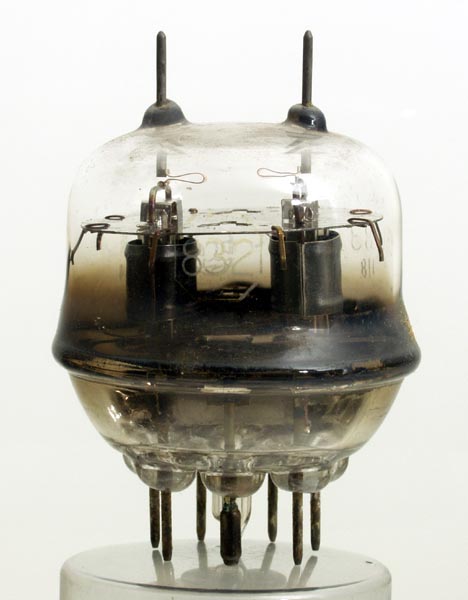

The wide glass tube envelope reaches a maximum diameter of 56 mm and is 52 mm tall excluding the B7A base pins.
References: Datasheet, 3002 & 1050. Type 832A was first introduced in 1943.



Pin Connections
B7A
1
2
3
4
5
6
7
tc
tc
h
g1(2)
g2
k,bp
hct
g1
h
a
a(2)



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pout
Pdiss
freq
f.max
6.3
1.6
500
200
-65
72
14
2.6
0.18W
26
15W
200
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
