GC10/4B

Sensibly equivalent to:
CV6100
See also:
Gas Filled Counting Tubes

Extras ▼

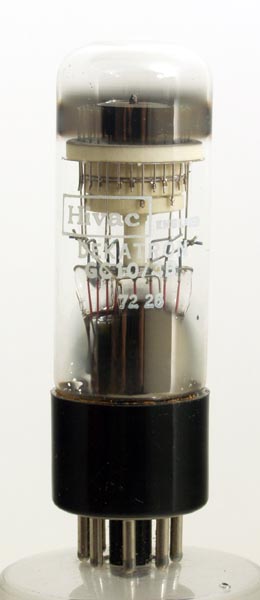

The GC10/4B is a cold cathode counting & display tube. In use the discharge would cause one of the cathodes to glow and its position would indicate a number. The cathodes and guide electrodes are all arranged around a central common anode. The orange glow of the neon discharge allows the position of the discharge to be seen and thus functions as a indicator. An output pulse is achieved once for every ten input pulses allowing cascaded devices to form the digits of a decade counter.
To advance the display the inter-cathode pin electrodes would be energised, the article above gives a detailed discription of how to operate these tubes. The discharge would walk to the next cathode using the pin as a guide.

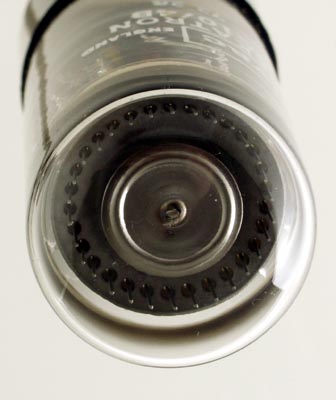

The end window envelope is 28 mm in diameter, and excluding the IO base pins, is 86 mm tall.
References: Datasheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
k(com)
kd
gu1
a
gu2
k(a)
k(b)
k(c)



Absolute Maximum Operating Conditions
Indicator
Va
350
Thanks to Frank Philipse for supplying the above PDF datasheet.
