CV1100

Sensibly equivalent to:
KTW62 VR100

Extras ▼

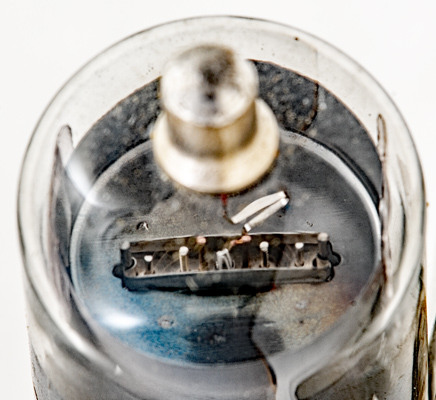

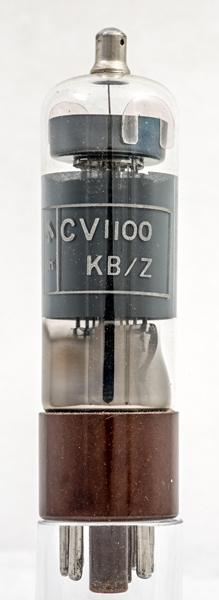

The CV1100 is an M-OV Type KTW62 supplied during WWII for RAF use. It is a variable-mu IF kinkless tetrode of the 6K7 class but with slightly more gain. Thousands were supplied during the WWII. This tubular glass version was probably a later product made for replacement purposes.
Not relating to this exact valve but this box shows how service users were notified about the CV numbers for existing types. The sticker dates from 1943 and the CV number is CV1100.
The box has been annotated with the old service code.

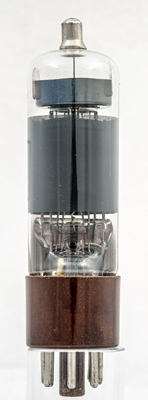

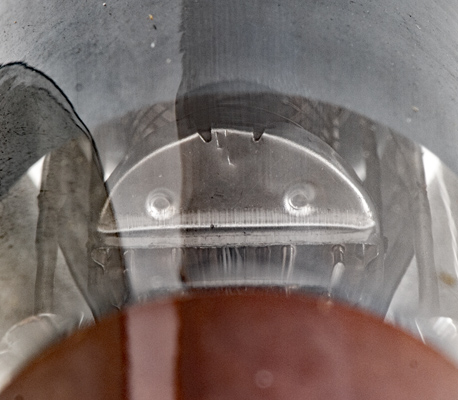

The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 99 mm tall.
References: Datasheet, private communication, 1005 & 1040.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2
g3
-
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
8.0
2.8
0.46M
2.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 05, 2014.
Return to Main Index
