CV4057Sensibly equivalent¶ to:CV371 CV4042 S19G6
|
|
|

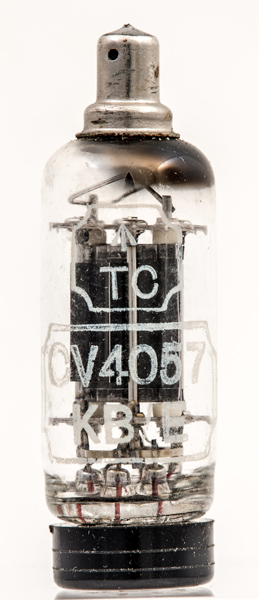

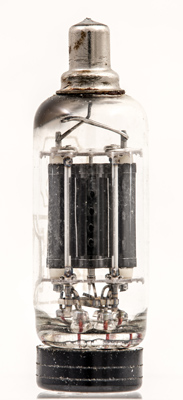

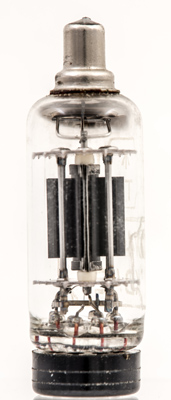

The CV4057 is a rugged high voltage half wave rectifier. The CV371 was the predecessor to this rectifier and the CV4042 is the same valve but with flying leads.In operation this valve can withstand a PIV of 5,000 Volts. The maximum reservoir capacitor value is 1.1 µF and a minimum effective series resistance of 4500 Ohms is required. The peak anode current is up to 180 mA.This was also made with flying leads for direct wiring in to a circuit.The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins, is 28 mm tall.References: Data-sheet & 1040. Type CV4057 was first introduced in 1958. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | tc |  ic | k | h | h | ic | ic | ic | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | mAa |
| 4.0 | 0.5 | 2000 | 30 |
|
Updated October 16, 2013. shape:thin.glass.tube construction:all.glass type:rectifier.hw age:1950.1960 base:b7g heater:4.0v pins:7 pin:1.ic pin:2.k pin:3.h pin:4.h pin:5.ic pin:6.ic pin:7.ic pin:tc.a
|
|
