CV371Sensibly equivalent¶ to:19G6 CV4057 SU45 VX2016 VX6036
|
|
|

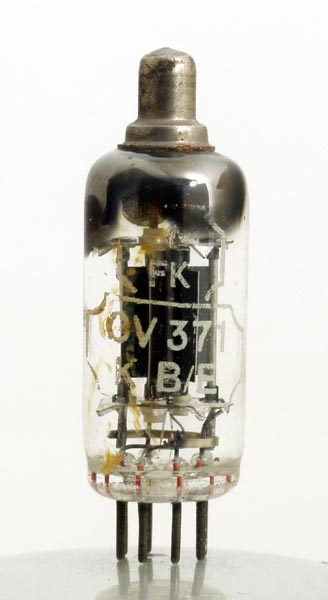

The CV371 is an EHT rectifier designed for high voltage power supplies generally. The prototypes for this CV specification were the VX2016 and VX6036. The CV371 rectifier was developed into a reliable rugged type the CV4057.The minimum effective series resistance needs to be 5,400 Ohms to limit peak current and the maximum reservoir capacitor is limited to 1.1 μF.The KB/E identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the E identifies the maker as Thorn-AEI, Brimsdown.The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 48 mm tall.References: Data-sheet & 1040. Type CV371 was first introduced in 1949. See also 1949 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | tc |  k | k | h | h | k | k | k | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | mAa |
| 4.0 | 0.5 | 2500 | 30 |
|
