VI103

Sensibly equivalent to:
CV1103 Y63
See also:
Tuning Indicators - CV1103 short entry

Extras ▼



The designation VI103 or Valve Indicating 103, is a UK military type that predates the CV or common Valve naming system introduced in 1941.
The VI103 specification is virtually the same as the commercial Y63 in specification.

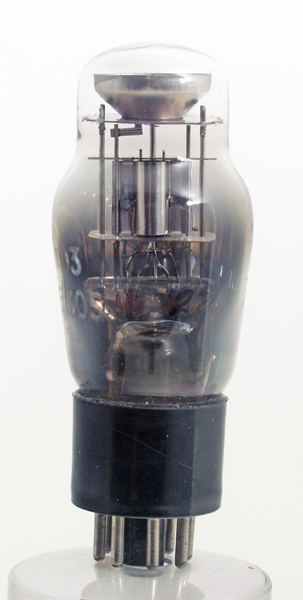

The display electrodes are symmetrical in the classic envelope.
The classic envelope is 36 mm in diameter and, excluding the IO base pins, is 87 mm tall.
References: Datasheet, 3002, 1043 & 1040. Type VI103 was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
a
t
g1
-
h
k



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
mAa
6.3
0.3
200
4.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 04, 2015.
