CV1053

Sensibly equivalent to:
ARP34 CV5110 EF39 OM6 POVT180 VR53

Extras ▼



The CV1053 is a variable-mu RF pentode, with variable screen characteristics, for use as a controlled RF or IF amplifier. The frequency range of operation would be up to 30 MHz.

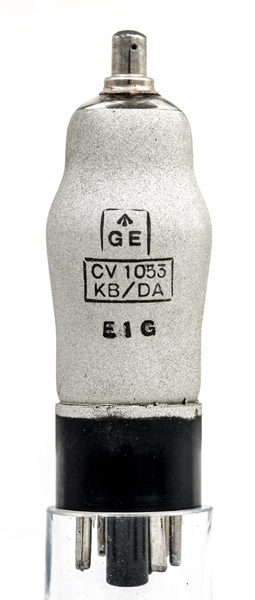

As a commercial valve the CV1053 can be seen as the Mullard EF39 and the two exhibits have identical dimensions suggesting a common production line.

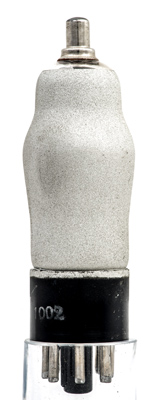

The reverse is plain zinc metal paint screening.
The classic envelope is 30 mm in diameter and excluding the IO base pins it is 85 mm long.
References: Data-sheet, 1040 & 1043. Type CV1053 was first introduced in 1939. See also 1939 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2
g3
nc
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
250
250
-2.5
6
1.7
1.5M
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
