D.3

Sensibly equivalent to:
Det LF Variants) and
See also:
Some Important British Valves - Mullard Double Green Ring Valves Advert - Mullard D.3HF Box

Extras ▼

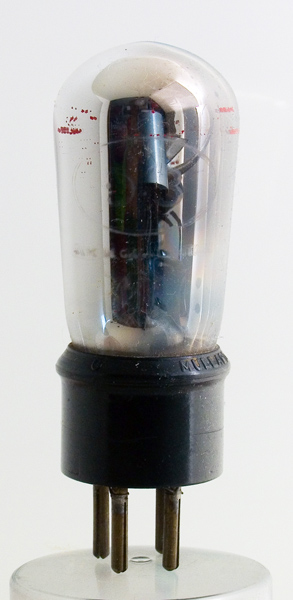

The D.3 design from Mullard dates from 1924. It is a dull emitter triode and the two red rings denote the HF variant. Other variants included one with two green rings for LF (AF) use also introduced in 1924 and the detector with two white rings introduced in 1925.
The D.3 HF had a μ of 17 whereas the other two had amplification factors of seven.
The D.3 differs from the D.06 in that the latter was designed with a 3.0 V 60 mA filament.
The electrodes are mounted vertically at an angle. The cylindrical anode has a spiral grid within and a single strand filament running through the centre.
The balloon envelope is 35 mm in diameter and, excluding the B4 base pins, is 81 mm tall.
Reference: 1003. Type D.3 was first introduced in 1924. See also 1924 adverts.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.0
0.3
50-125
-
-
60,000
0.28
