CV248Sensibly equivalent¶ to:
|
|
|
The CV248 photocell is designed to operate with 160 Volts on the anode and was based on the commercial GS16.

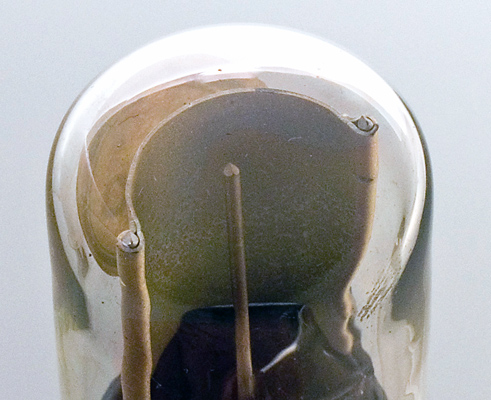

Construction is a photosensitive semi-circular cathode with a rod anode at its centre all mounted on a conventional pinch.The KB/D identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the D identifies the maker as Mullard Radio Valve Co., Mitcham.The thin glass tube envelope is 25 mm in diameter, and excluding the B4 base pins is 57 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 |  a | nc | nc | k |
|
|
Absolute Maximum Operating Conditions¶
| Va |
| 140 |
|
