This Cintel GS16 photocell has a large curved photo-cathode and a rectangular wire anode in front of the cathode.
This type of photocell is operated with a positive bias of several tens of Volts to the anode and a high value series resistor. The output voltage is taken by a high impedance amplifier from across the resistor. The photo-current is only a few µAmps at most.The G indicates that this is a gas filled cell. Such photocells are applicable for on/off applications and were used in cinema sound systems with a maximum audio frequency of 12 kHz.

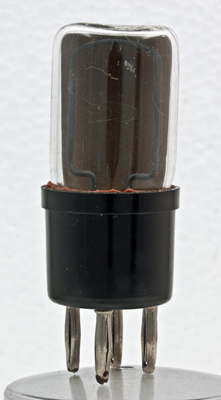

The side view of the electrode assembly shows the anode as a rectangular wire loop.

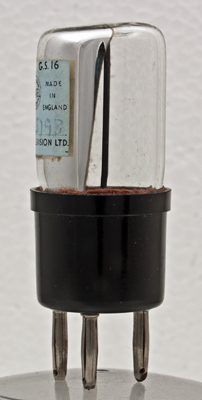

The face view shows the curved cathode as a rectangular plate.
The wide glass tube envelope is 26 mm in diameter and, excluding the B4 base pins, is 56 mm tall.
Reference: Data-sheet.


Pin Connections


Absolute Maximum Operating Conditions
Light Control
Thanks to Frank Philipse for supplying the above PDF datasheet.
