CV161

Sensibly equivalent to:
E1342 V526T VS26

Extras ▼

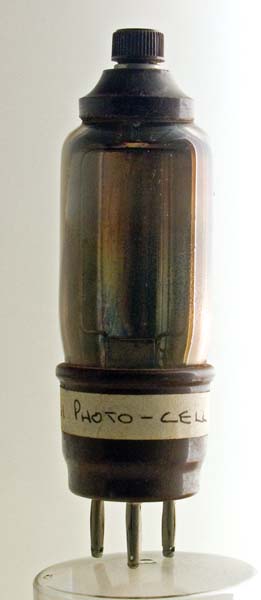

The CV161 photocell is a relatively large device and the style of the screw top cap suggests a early/mid 1930s origin. The cathode is semi-circular with a rectangular wire rod anode connected to the top cap.
The wide glass tube envelope is 33 mm in diameter, and excluding the B4 base pins is 100 mm tall.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Photocell
Va
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 02, 2013.
