5Z4

Sensibly equivalent to:
CV1864 VT-74
See also:
Metal Striptease

Extras ▼

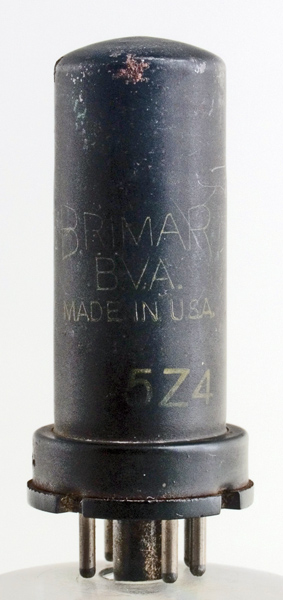

The 5Z4 was designed to supply equipment of up to 40 Watts total power, this rectifier was made by several manufacturers. This suggests it became a very popular type. Brimar is the name on the envelope but this valve was made in the USA for Brimar.
The thin metal tube envelope is 24 mm in diameter and excluding the IO base pins, is 65 mm tall.
References: Datasheet, 1040 & 1043. Type 5Z4 was first introduced in 1935.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
nc
a(2)
nc
a(1)
nc
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
350
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 28, 2013.
