The 64ME is a dual shadow magic eye tuning indicator and an equivalent of the Mullard EM34.

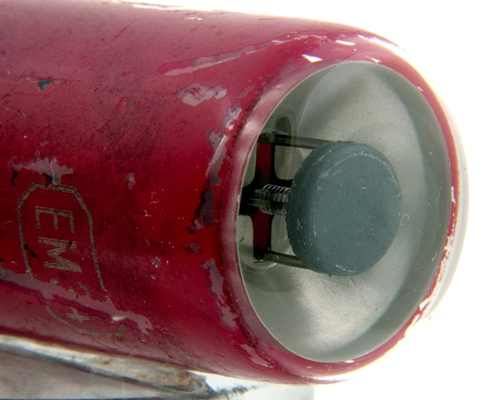

The end window and target.

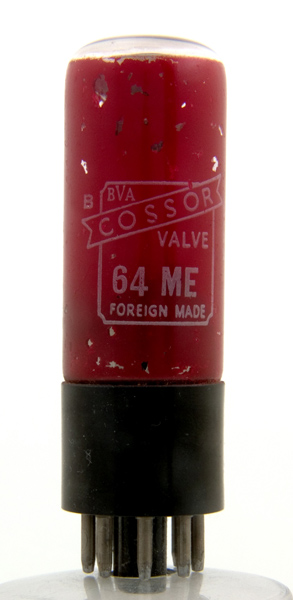

On the reverse of the envelope is printed the equivalent valve from Mullard, namely the EM34.
The wide glass envelope is 25 mm in diameter and, excluding the IO base pins is 77 mm tall.
References: Datasheet, 1040 & 3002. Type 64ME was first introduced in 1946.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
a(1)
g1
t
a(2)
h
k



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
mAa
6.3
0.2
250
0.75
Thanks to Frank Philipse for supplying the above PDF datasheet.
